Condition

Connect some inputs and some outputs to this node, then write rules in the schema box that describe what to watch for and what to send when a rule is met.

Every time a new value arrives on any input, the node checks all the rules. If a rule’s conditions are all satisfied, it immediately sends the values specified to the chosen outputs — then resets, ready to fire again the next time.

Note: It only fires once per “completion” — after firing, it forgets what it saw and waits for fresh values to arrive again before it can fire a second time.

Writing rules (the schema)

The schema is a JSON array — a list of rules, each with a condition and a list of actions to take when that condition is true.


// A list of rules. You can have as many as you like.
[
  {
    "condition": { },
    "actions":   [ ]
  }
]

Three ways to write a condition

Type	What it means
`and`	All of the sub-conditions must be true at the same time
`or`	At least one sub-condition needs to be true
`eval`	Check one input value — against a fixed value, another input’s value, or by its length

Setting up a check (`eval`)

Every eval starts with the input to read and how to compare it:

Setting	What to put here
`receiver`	The name of the input to read. If the input carries a map, use a dot to reach inside it: `sensor.temperature`
`operator`	How to compare: `==` `!=` `<` `<=` `>` `>=`

Then choose what to compare against — one of the two options below.

Option A — a fixed value (the usual way):

Setting	What to put here
`datatype`	What kind of value you’re comparing against: `BOOL`, `INT`, `FLOAT`, `STRING`, `BYTES`
`value`	The value to compare against. For numeric datatypes, numbers are `decimal`. if you need `hexadecimal`, provide the value as a string with a `0x` prefix (e.g., `"0xFF"`); for `INT`, this is automatically converted, so `"0x64"` and `100` are treated the same. For `BYTES`, provide a comma- or space-separated list (e.g., `"0x00, 0x04, 0xFF"`)

Option B — another input’s value:

Setting	What to put here
`value_receiver`	The name of another input whose most recent value to compare against. Use a dot to reach inside a map, e.g. `sensorB.temperature`. No `datatype` is needed — the two values are compared directly

Use either value (with datatype) or value_receiver — not both.

Comparing lengths instead of values

Add length: true to any eval to compare the length of the input value rather than the value itself:

Setting	What to put here
`length`	When `true`, compares the number of bytes in the input value — for a `STRING` this is its UTF-8 byte length, for `BYTES` it’s the byte count. Compared against `value` (a whole number, e.g. `8`), or against another input’s length when combined with `value_receiver`

Two ways to send output (actions)

Send a fixed value — always sends the same thing, no matter what came in:


"payload": {
  "type": "static",
  "datatype": "STRING",
  "value": "Alert!"
}

Forward a value from an input — passes along whatever arrived on a given input. Use a dot to reach into a map:


"payload": {
  "type": "dynamic",
  "receiver": "sensor.temp"
}

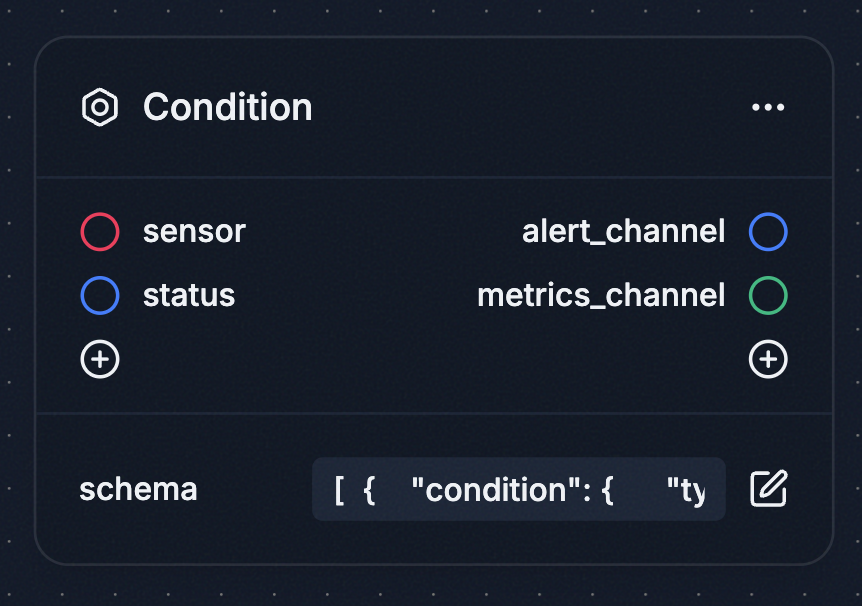

Example 1 — temperature alert

Fire when a sensor reads 100 or above AND the system status says "ACTIVE". Send a warning message to one output and the raw temperature number to another.

Inputs: sensor (a map containing temperature), status (a string)
Outputs: alert_channel, metrics_channel


[
  {
    "condition": {
      "type": "and",
      "operands": [
        {
          "type": "eval",
          "receiver": "sensor.temperature",
          "operator": ">=",
          "datatype": "INT",
          "value": 100
        },
        {
          "type": "eval",
          "receiver": "status",
          "operator": "==",
          "datatype": "STRING",
          "value": "ACTIVE"
        }
      ]
    },
    "actions": [
      {
        "sender": "alert_channel",
        "payload": { "type": "static", "datatype": "STRING", "value": "Overheating!" }
      },
      {
        "sender": "metrics_channel",
        "payload": { "type": "dynamic", "receiver": "sensor.temperature" }
      }
    ]
  }
]

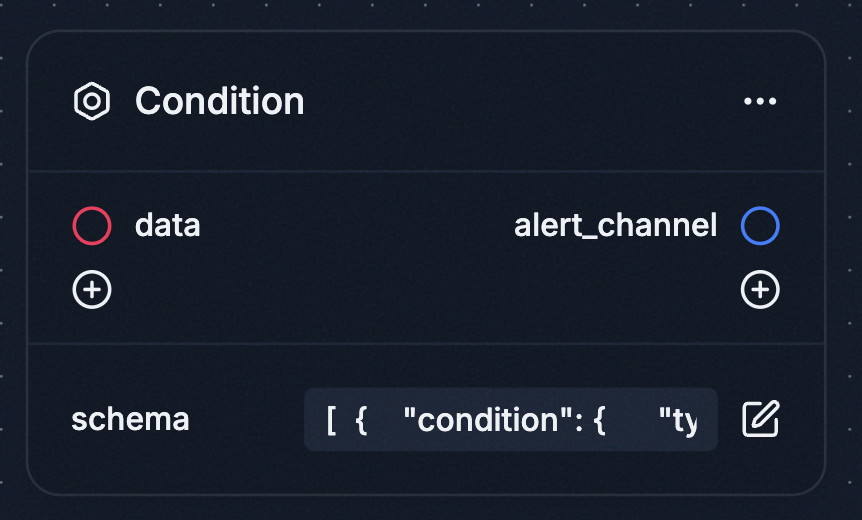

Example 2 — matching byte sequences

Route two different incoming messages to different places based on a byte ID. Both rules watch the same input; whichever ID matches fires its action.

Inputs: data (a map containing frame_id as bytes)
Outputs: alert_channel


[
  {
    "condition": {
      "type": "eval",
      "receiver": "data.frame_id",
      "operator": "==",
      "datatype": "BYTES",
      "value": "0x00, 0x04, 0x04, 0x10"
    },
    "actions": [{ "sender": "alert_channel", "payload": { "type": "static", "datatype": "STRING", "value": "Hello" } }]
  },
  {
    "condition": {
      "type": "eval",
      "receiver": "data.frame_id",
      "operator": "==",
      "datatype": "BYTES",
      "value": "0x00, 0x04, 0x04, 0x08"
    },
    "actions": [{ "sender": "alert_channel", "payload": { "type": "static", "datatype": "STRING", "value": "World" } }]
  }
]

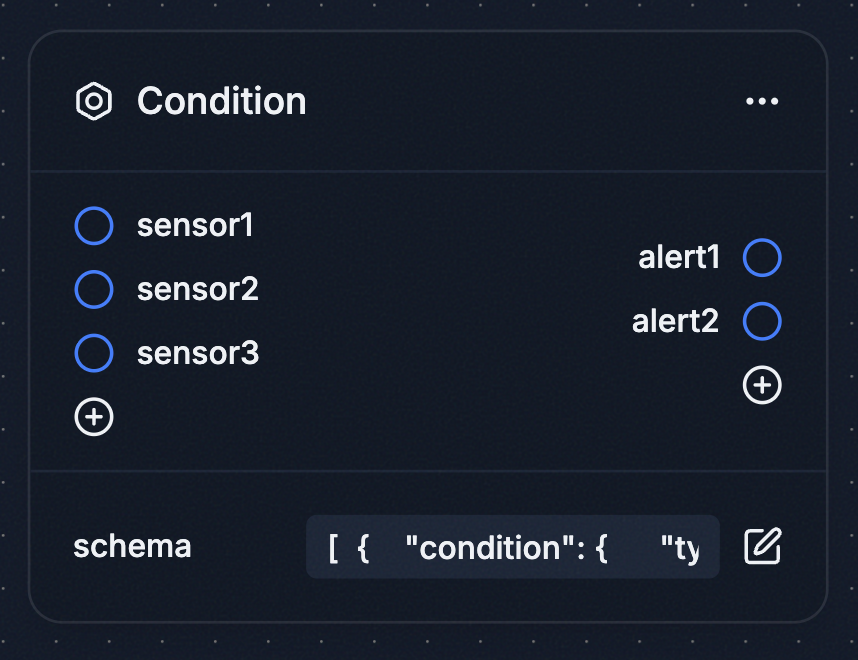

Rule 1 needs sensor1 and sensor2 to both say "HIGH". Rule 2 needs sensor1 and sensor3. Each rule keeps its own memory — when Rule 1 fires and resets, Rule 2 still remembers the value it already received from sensor1.

Inputs: sensor1, sensor2, sensor3
Outputs: alert1, alert2


[
  {
    "condition": {
      "type": "and",
      "operands": [
        { "type": "eval", "receiver": "sensor1", "operator": "==", "datatype": "STRING", "value": "HIGH" },
        { "type": "eval", "receiver": "sensor2", "operator": "==", "datatype": "STRING", "value": "HIGH" }
      ]
    },
    "actions": [{ "sender": "alert1", "payload": { "type": "static", "datatype": "STRING", "value": "SCHEMA_1_FIRED" } }]
  },
  {
    "condition": {
      "type": "and",
      "operands": [
        { "type": "eval", "receiver": "sensor1", "operator": "==", "datatype": "STRING", "value": "HIGH" },
        { "type": "eval", "receiver": "sensor3", "operator": "==", "datatype": "STRING", "value": "HIGH" }
      ]
    },
    "actions": [{ "sender": "alert2", "payload": { "type": "static", "datatype": "STRING", "value": "SCHEMA_2_FIRED" } }]
  }
]

Example 4 — comparing two inputs

Fire when one sensor reads higher than another, instead of comparing against a fixed number. Note there’s no datatype or value — the rule compares the two inputs’ latest values directly.

Inputs: sensorA (a map containing temp), sensorB (a map containing temp)
Outputs: alert_channel


[
  {
    "condition": {
      "type": "eval",
      "receiver": "sensorA.temp",
      "operator": ">",
      "value_receiver": "sensorB.temp"
    },
    "actions": [{ "sender": "alert_channel", "payload": { "type": "static", "datatype": "STRING", "value": "A is hotter than B" } }]
  }
]

Example 5 — checking length

Fire when an incoming message is at least 8 bytes long, regardless of its contents. The value is the length to compare against.

Inputs: data (bytes)
Outputs: alert_channel


[
  {
    "condition": {
      "type": "eval",
      "receiver": "data",
      "operator": ">=",
      "length": true,
      "value": 8
    },
    "actions": [{ "sender": "alert_channel", "payload": { "type": "static", "datatype": "STRING", "value": "Long enough" } }]
  }
]

Things to keep in mind


Reaching inside a map	Use a dot to access a field inside a map value — e.g. `sensor.temperature`. Multiple levels can be chained: `data.packet.id`
An input named with a dot	If an input is itself named `sensor.temperature`, that input wins — the name is read as the input, not as a path into `sensor`. This holds even before that input has received anything, so the meaning of a `receiver` never changes with the data that has arrived
Output names must match	The `sender` name in each action must exactly match an output added to the node
Input names must match	The `receiver` name in each condition — and the `value_receiver` name, when comparing against another input — must exactly match an input added to the node
Waiting for data	If a required input hasn’t arrived yet, the rule simply waits — nothing breaks
Multiple actions	All actions in a rule fire together the moment its condition is met
Sharing inputs across rules	Multiple rules can watch the same input. Each rule remembers values independently, so one firing doesn’t affect the others
